Polypropylene Bodied Check Valve, Viton Diaphragm, 3.2mm (1/8") ID Tube, Cracking Pressure 0.5 psi

Polypropylene Bodied Check Valve, Viton Diaphragm, 3.2mm (1/8") ID Tube, Cracking Pressure 0.5 psi

E-C-180039

Polypropylene Bodied Check Valve, Viton Diaphragm, 3.2mm (1/8") ID Tube, Cracking Pressure 0.5 psi

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Polypropylene Bodied Check Valve, Viton Diaphragm, 3.2mm (1/8") ID Tube, Cracking Pressure 0.5 psi
£4.24+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£4.24

10 - 24

£4.03

25 - 49

£3.82

50 - 99

£3.60

100 - 249

£3.39

250 - 499

£3.18

500

£2.97

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-C-180039

Polypropylene Bodied Check Valve, Viton Diaphragm, 3.2mm (1/8") ID Tube, Cracking Pressure 0.5 psi

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Polypropylene Bodied Check Valve, Viton Diaphragm, 3.2mm (1/8") ID Tube, Cracking Pressure 0.5 psi

Extended Description In-line, Polypropylene bodied check valve complete with Viton diaphragm and plain stem ports to suit 1/8" ID tubing. This valve has a cracking pressure of 0.5 psi and will operate in any orientation. Can be used with Vacuum or pressure and is also suitable for some vapour, gas and fluid systems

Ambient Temperature -29°C – 121°C (-20°F – 250°F)

Mounting Style In-line

Connection 1 To suit 3.2mm (1/8") ID Tube

Connection 2 To suit 3.2mm (1/8") ID Tube

Recommended Filtration To Suit Application and Media

Media Temperature -29°C – 121°C (-20°F – 250°F)

Non-Wetted Materials Polypropylene

Wetted Materials Polypropylene, Viton

Cleanroom Manufactured No

Max. Inlet Pressure 1.03 bar (15 psi)

Flow Rate Approx. 5.66 L/Min (12 CFH) Forward Flow at 5 psi

Cracking Pressure 0.034 bar (0.5 psi)

Item Weight 0.0020Kg (2g)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data A check valve is generally used in a pneumatic circuit which requires free flow in one direction (Normally indicated with an arrow on the check valve) and no flow in the opposite direction, they can also be useful as a bypass valve allowing flow around other circuitry components such as needle valves which would restrict the flow in both directions. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

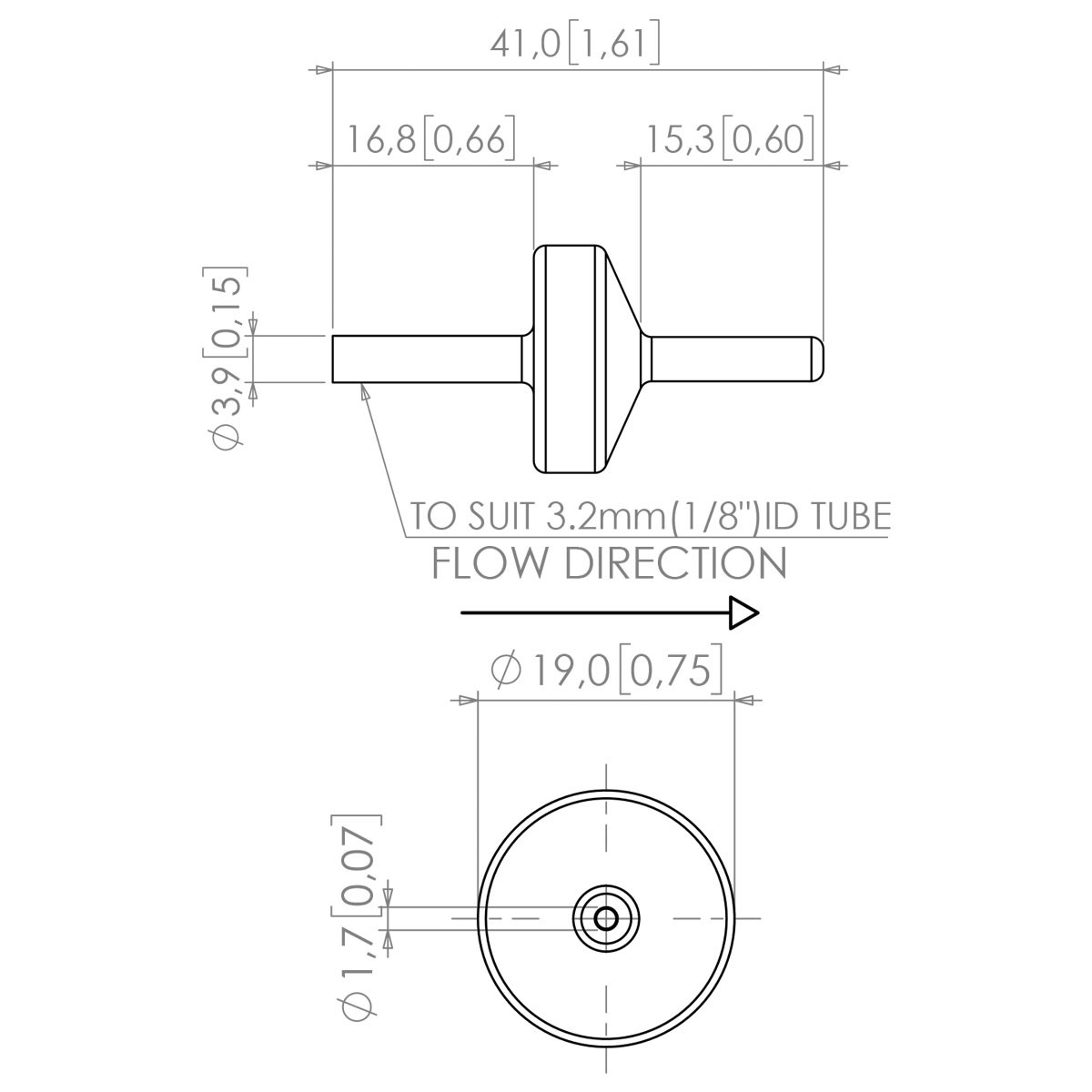

Dimensional Drawing (pdf)

3D model (IGS)
