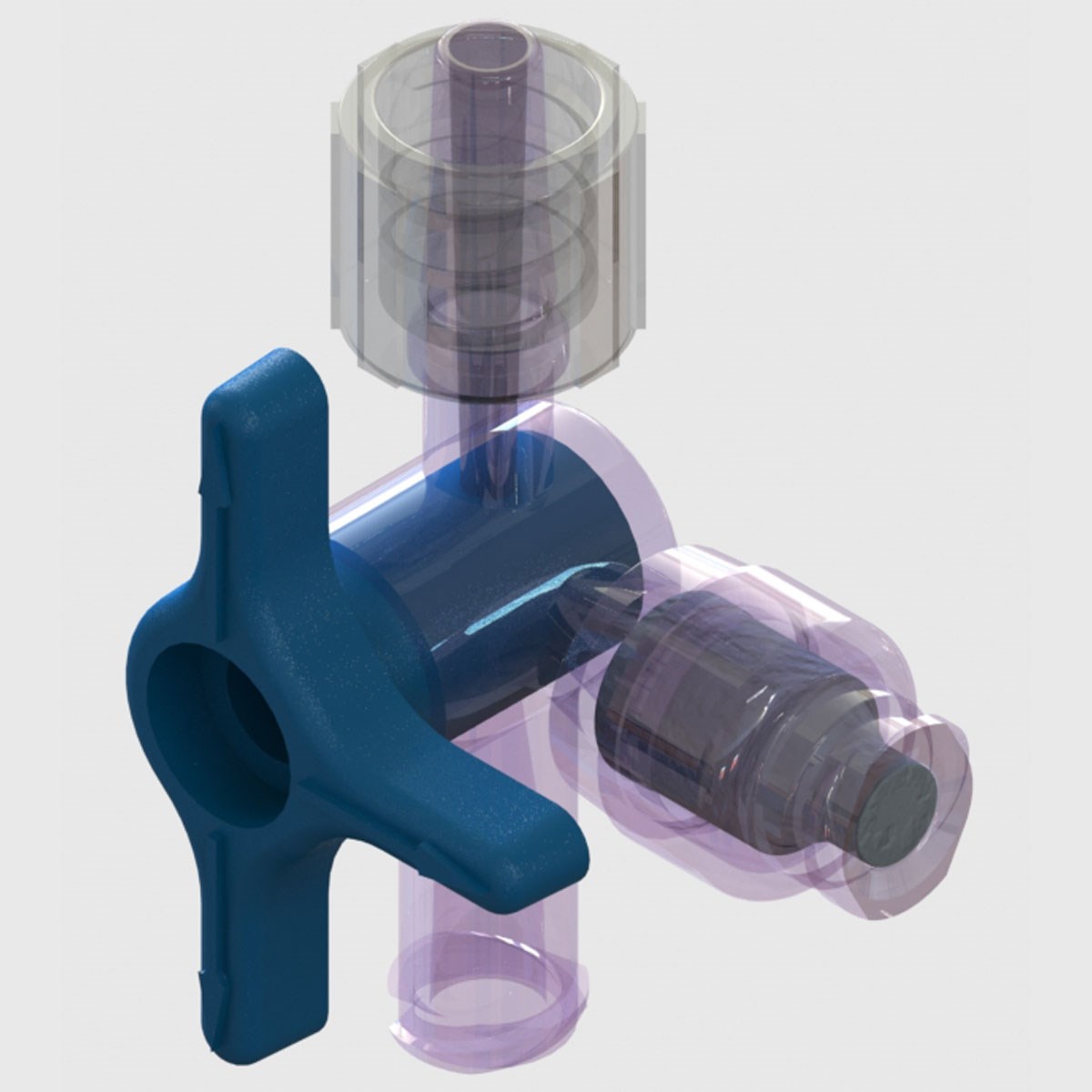

4 Way T-Handle Swabable Needle Free Luer Activated Stopcock, Clear Polycarbonate, Blue HDPE Handle

4 Way T-Handle Swabable Needle Free Luer Activated Stopcock, Clear Polycarbonate, Blue HDPE Handle

E-N-190069

4 Way T-Handle Swabable Needle Free Luer Activated Stopcock, Clear Polycarbonate, Blue HDPE Handle

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

4 Way T-Handle Swabable Needle Free Luer Activated Stopcock, Clear Polycarbonate, Blue HDPE Handle
Contact us for pricing
Add To Wishlist
X

Bulk price quote request

Product Details

E-N-190069

4 Way T-Handle Swabable Needle Free Luer Activated Stopcock, Clear Polycarbonate, Blue HDPE Handle

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description 4 Way T-Handle Swabable Needle Free Luer Activated Stopcock, Clear Polycarbonate, Blue HDPE Handle

Extended Description A Clear Polycarbonate bodied 4 way T-handle swabable luer activated stopcock that provides the safety of a closed system with a leak free swabable port. The needle free access port can be swabbed to provide a sterile barrier.

Ambient Temperature 0°C – 74°C (32°F – 165°F)

Mounting Style In-line

Connection 1 Female Luer Lock

Connection 3 Male Luer Lock

Connection 2 Female Luer Lock

Recommended Filtration Not Applicable

Media Temperature 0°C – 74°C (32°F – 165°F)

Non-Wetted Materials Not Applicable

Wetted Materials Clear Polycarbonate, HDPE, Acrylic, Blue Silicone

Cleanroom Manufactured No

Max. Inlet Pressure 22.4 Bar* (325 psi*)

Max. Back Pressure 2.75 Bar▲ (40 psi▲)

Cracking Pressure Valve Opened by Luer Connection

Item Weight 0.0045Kg (0.0oz)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data All materials are Gamma resistant, DEHP-free and Latex-free. Product can be sterilised by ETO and Gamma based on raw material manufacturers data. Luer fittings are compatible with ANSI/HIMA MD70.1-83 & ISO 594. The valves allow multiple usages and require no cap. Valve stems and bodies will mate securely with all standard Luer syringes and Luer connectors. The swabable valve is a medical component supplied bulk, non-sterileFor manufacturing processing or re-packing. Customer is responsibleFor the qualification/verification of the product in their final application. *When valve is opened by Luer connector, this needs to be confirmed by your specific application. ▲When valve is closed.For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

3D model (IGS)

Glossary of terms
