Description Swabable Needle Free Luer Activated Multi-Port Manifold, Clear Polycarbonate

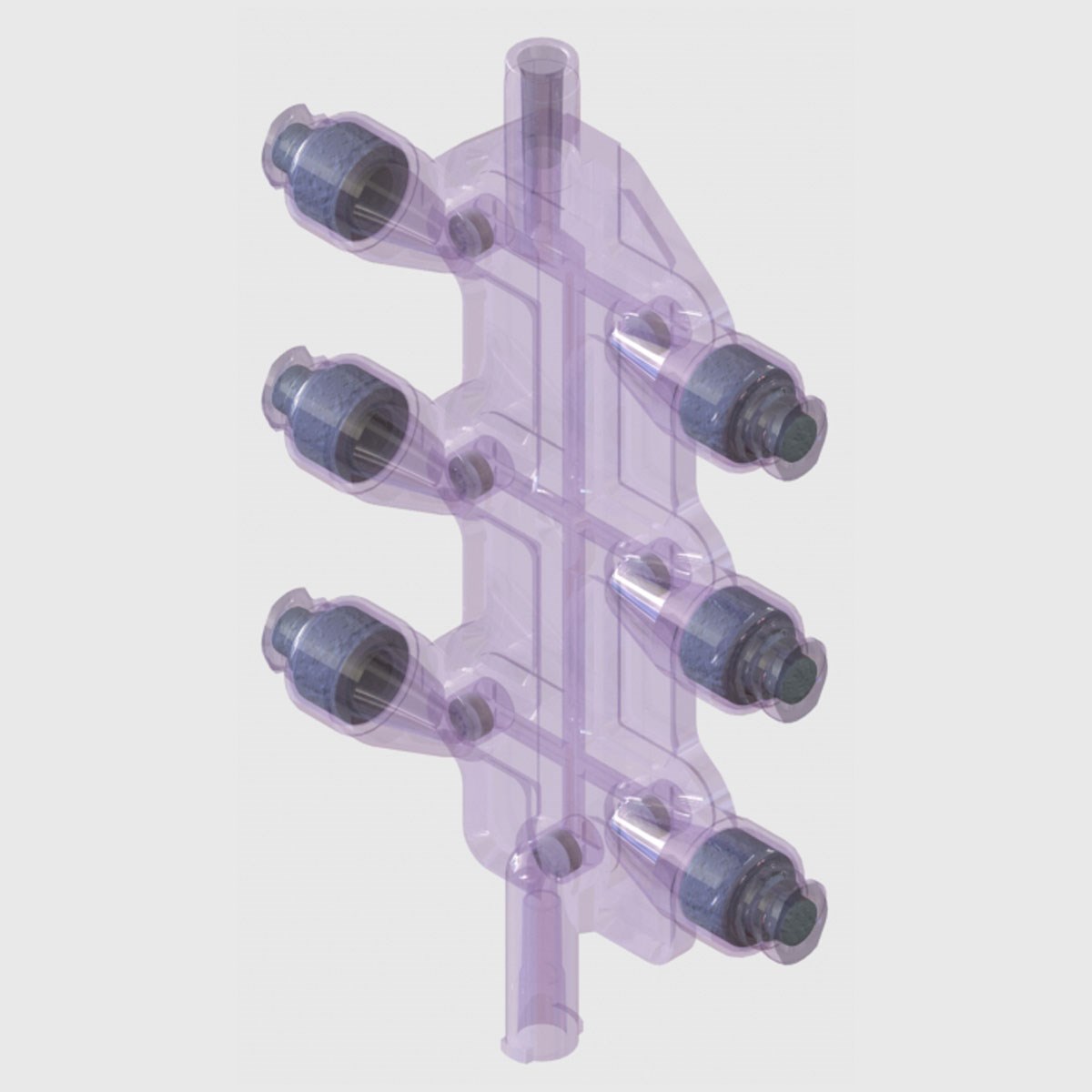

Extended Description A Clear Polycarbonate bodied swabable multi-port manifold with 6 needle free injection sites and a flow controlled Inlet port, each of the needle free injection sites has a back check valve integrated below the injection site, the Inlet port also has this feature.

Ambient Temperature 0°C – 121°C (32°F – 250°F)

Mounting Style In-line

Connection 1 Female Luer Lock x6

Connection 2 Female Luer Lock

Recommended Filtration Not Applicable

Media Temperature 0°C – 121°C (32°F – 250°F)

Non-Wetted Materials Not Applicable

Wetted Materials Clear Polycarbonate, Blue Silicone, Polyisoprene

Cleanroom Manufactured No

Max. Inlet Pressure 22.4 Bar* (325 psi*)

Max. Back Pressure 2.75 Bar▲ (40 psi▲)

Cracking Pressure Valve Opened by Luer Connection

Item Weight 0.0181Kg (0.640oz)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data All materials are Gamma resistant, DEHP-free and Latex-free. Product can be sterilised by ETO and Gamma based on raw material manufacturers data. Luer fittings are compatible with ANSI/HIMA MD70.1-83 & ISO 594. The valves allow multiple usages and require no cap. Valve stems and bodies will mate securely with all standard Luer syringes and Luer connectors. The swabable valve is a medical component supplied bulk, non-sterileFor manufacturing processing or re-packing. Customer is responsibleFor the qualification/verification of the product in their final application. *When valve is opened by Luer connector, this needs to be confirmed by your specific application. ▲When valve is closed.For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
