Bag Access Swabable Needle Free Luer Activated Valve, Clear Polycarbonate

Bag Access Swabable Needle Free Luer Activated Valve, Clear Polycarbonate

E-N-190056

Bag Access Swabable Needle Free Luer Activated Valve, Clear Polycarbonate

In Stock
Bag Access Swabable Needle Free Luer Activated Valve, Clear Polycarbonate
£1.32+ VAT
Add To Wishlist
Quantity
Price

1 - 5

£1.32

6 - 10

£1.25

11 - 20

£1.19

21 - 50

£1.12

51 - 100

£1.06

101 - 200

£0.99

201 - 500

£0.92

501

£0.86

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-N-190056

Bag Access Swabable Needle Free Luer Activated Valve, Clear Polycarbonate

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Bag Access Swabable Needle Free Luer Activated Valve, Clear Polycarbonate

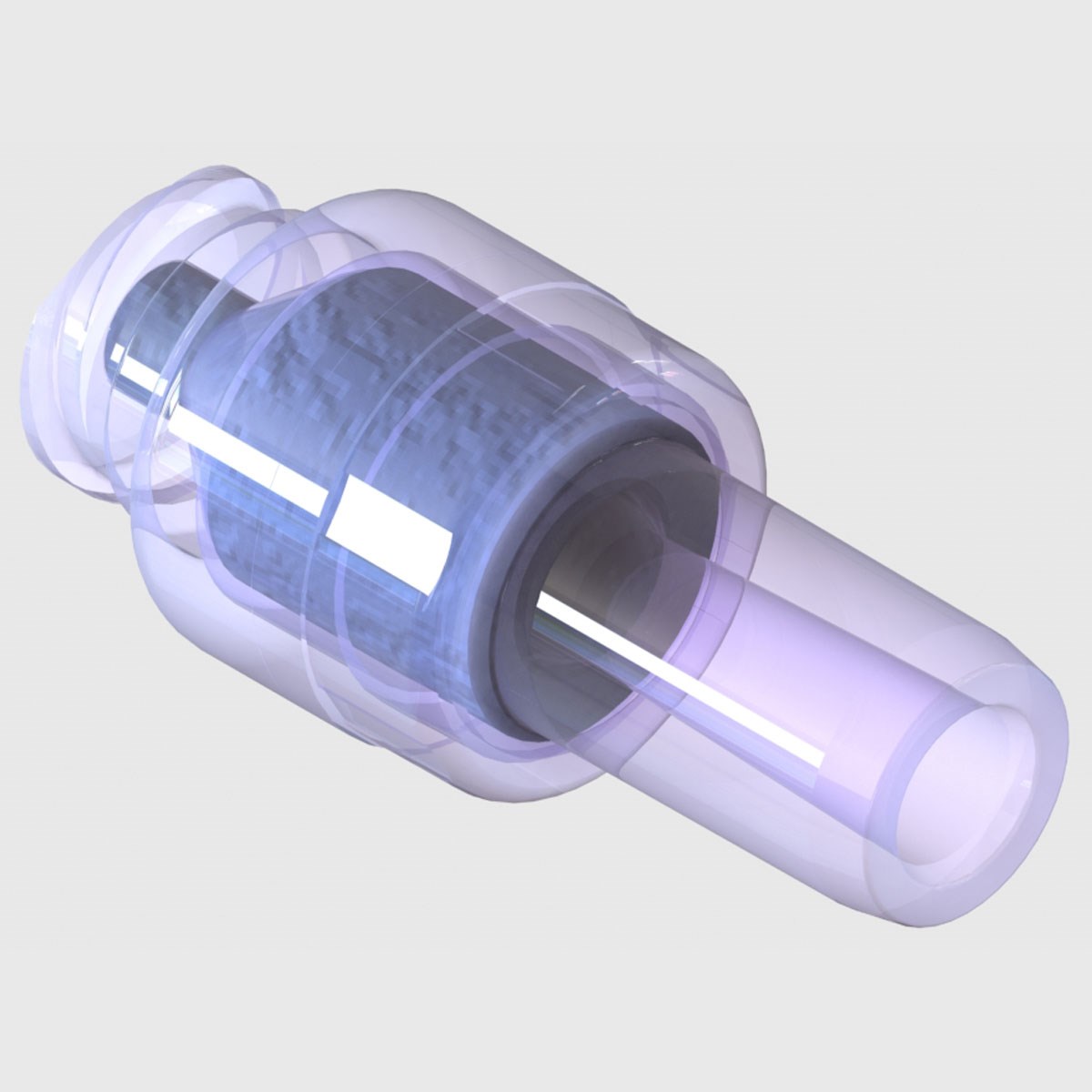

Extended Description A Clear Polycarbonate bodied bag access swabable valve designed to be used as a needle free injection site or to access the bag with a mating luer connector, eliminating the need for spike ports and needles

Ambient Temperature 0°C – 121°C (32°F – 250°F)

Mounting Style In-line

Connection 1 6.9mm OD (0.271") Bondable Tube Port for 6.6 mm ID Tube

Connection 2 Female Luer Lock

Recommended Filtration Not Applicable

Media Temperature 0°C – 121°C (32°F – 250°F)

Non-Wetted Materials Not Applicable

Wetted Materials Clear Polycarbonate, Blue Silicone

Cleanroom Manufactured No

Max. Inlet Pressure 22.4 Bar* (325 psi*)

Max. Back Pressure 2.75 Bar▲ (40 psi▲)

Cracking Pressure Valve Opened by Luer Connection

Item Weight 0.0016Kg (0.056oz)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data All materials are Gamma resistant, DEHP-free and Latex-free. Product can be sterilised by ETO and Gamma based on raw material manufacturers data. Luer fittings are compatible with ANSI/HIMA MD70.1-83 & ISO 594. The valves allow multiple usages and require no cap. Valve stems and bodies will mate securely with all standard Luer syringes and Luer connectors. The swabable valve is a medical component supplied bulk, non-sterileFor manufacturing processing or re-packing. Customer is responsibleFor the qualification/verification of the product in their final application. *When valve is opened by Luer connector, this needs to be confirmed by your specific application. ▲When valve is closed.For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

3D model (IGS)
