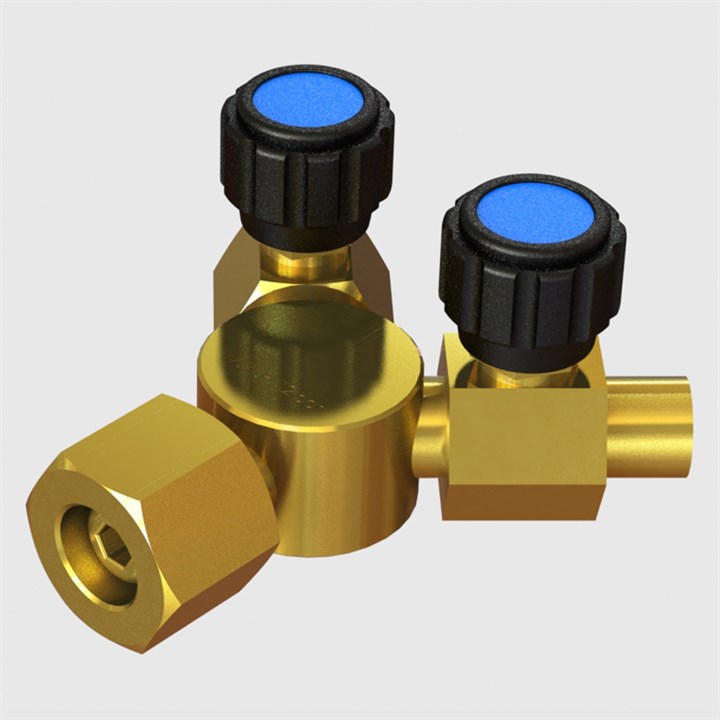

Twin Regulator Outlet Valve G3/8" Female x Male R/H Thread

Twin Regulator Outlet Valve G3/8" Female x Male R/H Thread

Name: Twin Regulator Outlet Valve G3/8" Female x Male R/H Thread
SKU: NTC 249
Price: 28.630000 GBP
Availability: OutOfStock

NTC 249

Twin Regulator Outlet Valve G3/8" Female x Male R/H Thread

NTC 249

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Twin Regulator Outlet Valve G3/8" Female x Male R/H Thread

£28.63+ VAT

Add To Wishlist

Product Details

Product Code NTC 249

Product Name Twin Regulator Outlet Valve G3/8" Female x Male R/H Thread

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description Twin Regulator Outlet Valve G3/8" Female x Male R/H Thread

Extended Description A twin flow regulator valve for connection to the low pressure outlet of the primary regulator. For use with non-flammable gas

Ambient Temperature -20°C to 60°C (-4°F to 140°F)

Mounting Style In-Line

Connection 1 G3/8" Female swivel nut R/H

Connection 2 2 off G3/8" Coned R/H

Recommended Filtration To suit application and media

Media Temperature -20°C to 60°C (-4°F to 140°F)

Non-Wetted Materials Brass, PTFE

Wetted Materials Brass, PTFE

Cleanroom Manufactured Controlled Environment

Max. Inlet Pressure 12 bar (174 psi)

Item Weight 0.4330 (0.95 lb)

ROHS Compliant No

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
