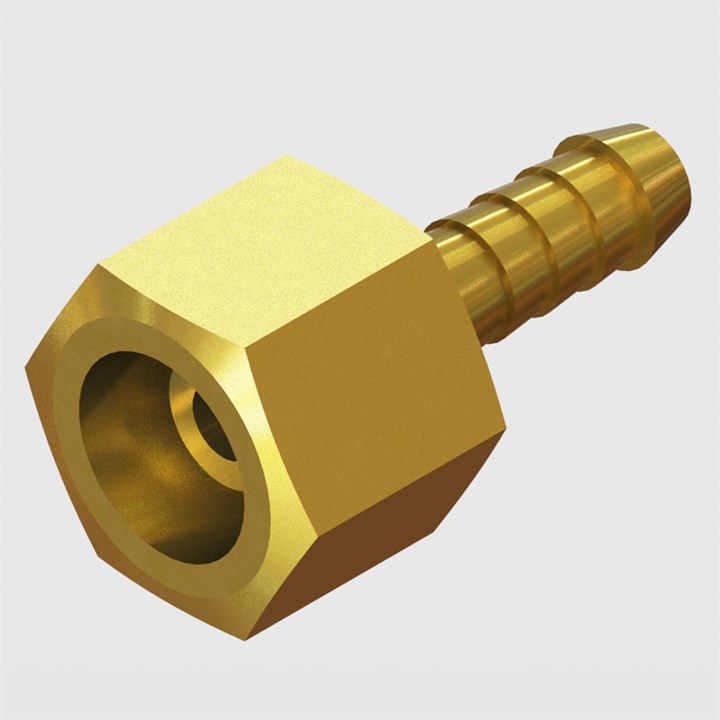

G3/8" Female Nut R/H x 5/16" Hosetail, Brass

G3/8" Female Nut R/H x 5/16" Hosetail, Brass

Name: G3/8" Female Nut R/H x 5/16" Hosetail, Brass
SKU: NTC HT516RH
Price: 7.010000 GBP
Availability: OutOfStock

NTC HT516RH

G3/8" Female Nut R/H x 5/16" Hosetail, Brass

NTC HT516RH

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

G3/8" Female Nut R/H x 5/16" Hosetail, Brass

£7.01+ VAT

Add To Wishlist

Product Details

Product Code NTC HT516RH

Product Name G3/8" Female Nut R/H x 5/16" Hosetail, Brass

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description G3/8" Female Nut R/H x 5/16" Hosetail, Brass

Extended Description G3/8" right hand female nut and 5/16" hosetail, Brass

Ambient Temperature -20°C to 60°C (-4°F to 140°F)

Mounting Style In-Line

Connection 1 G3/8" Female nut R/H

Connection 2 To suit 8.0 mm (5/16") ID Tube

Recommended Filtration To suit application and media

Media Temperature -20°C to 60°C (-4°F to 140°F)

Non-Wetted Materials Brass

Wetted Materials Brass

Cleanroom Manufactured Controlled Environment

Item Weight 0.0440 (1.55oz)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data *Maximum working pressure also depends on tube properties. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

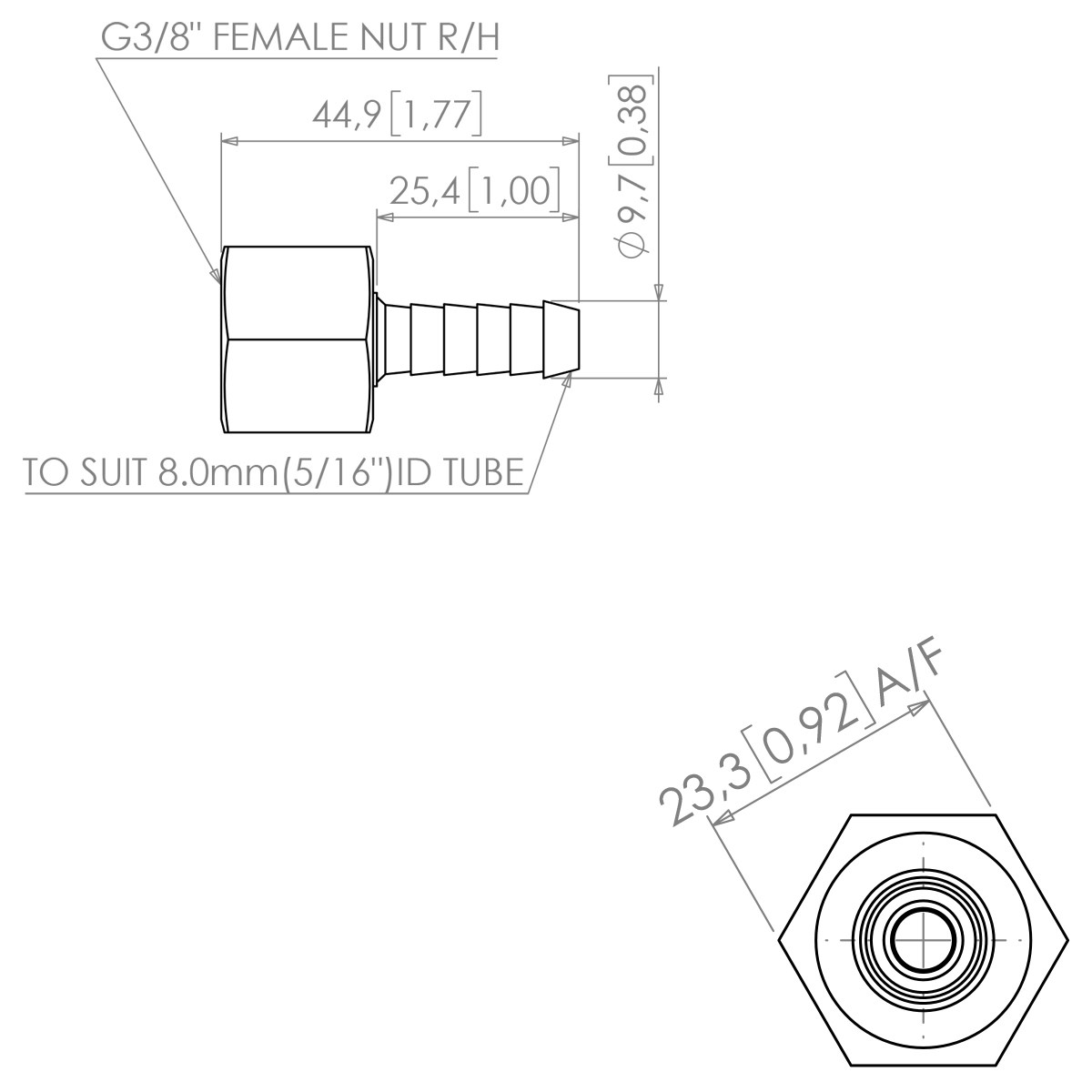

Dimensional Drawing (pdf)

3D model (IGS)
