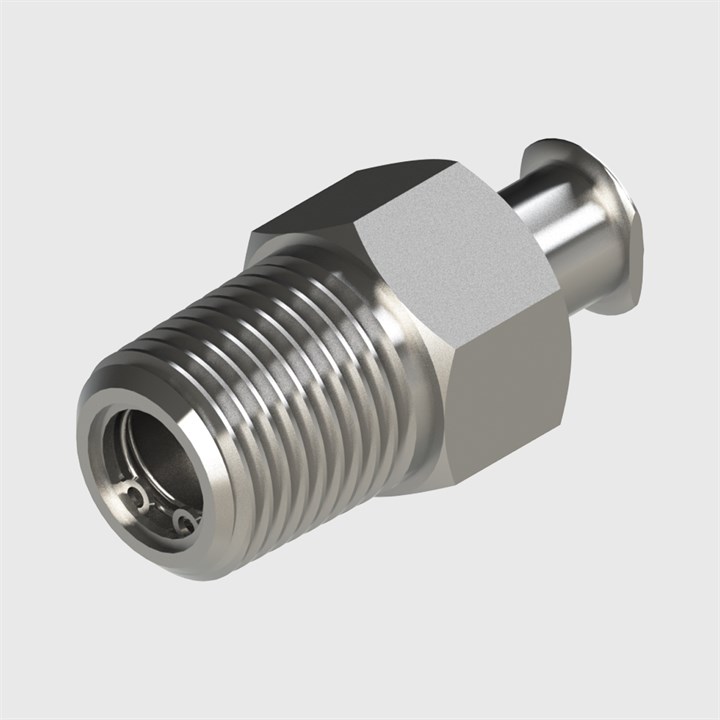

Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Slip Luer

Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Slip Luer

E-F-171361

Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Slip Luer

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Slip Luer
£13.70+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£13.70

10 - 24

£13.02

25 - 49

£12.33

50 - 99

£11.65

100 - 249

£10.96

250 - 499

£10.28

500

£9.59

Looking to purchase a large quantity? Click here

Product Information

Description Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Slip Luer

Extended Description A Nickel Plated Brass bodied luer valve with 1/8" NPT male Thread to female slip luer, complete with Silicone o-ring and 302 Stainless Steel spring. Valve open only when connected to male luer

Ambient Temperature -40 to 200°C (-40 to 392°F)

Mounting Style Threaded

Connection 1 1/8" NPT Male Thread

Connection 2 Female Slip Luer

Media Temperature -40 to 200°C (-40 to 392°F)

Non-Wetted Materials Nickel Plated Brass

Wetted Materials Nickel Plated Brass, Silicone, 302 Stainless Steel

Cleanroom Manufactured No

Max. Inlet Pressure No Data Available – Sample Test for Suitability

Operating Pressure Vacuum – 3.1 bar (45 psi) As Specified in Testing to ISO 594

Min Inlet Pressure Vacuum

Effective Orifice Size Data not available

Item Weight 0.0110Kg (11g)

ROHS Compliant Yes

Regulatory Information ISO 594

REACH Compliant Yes

Other Technical Data Suitable for compressed air and vacuum. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

Downloads

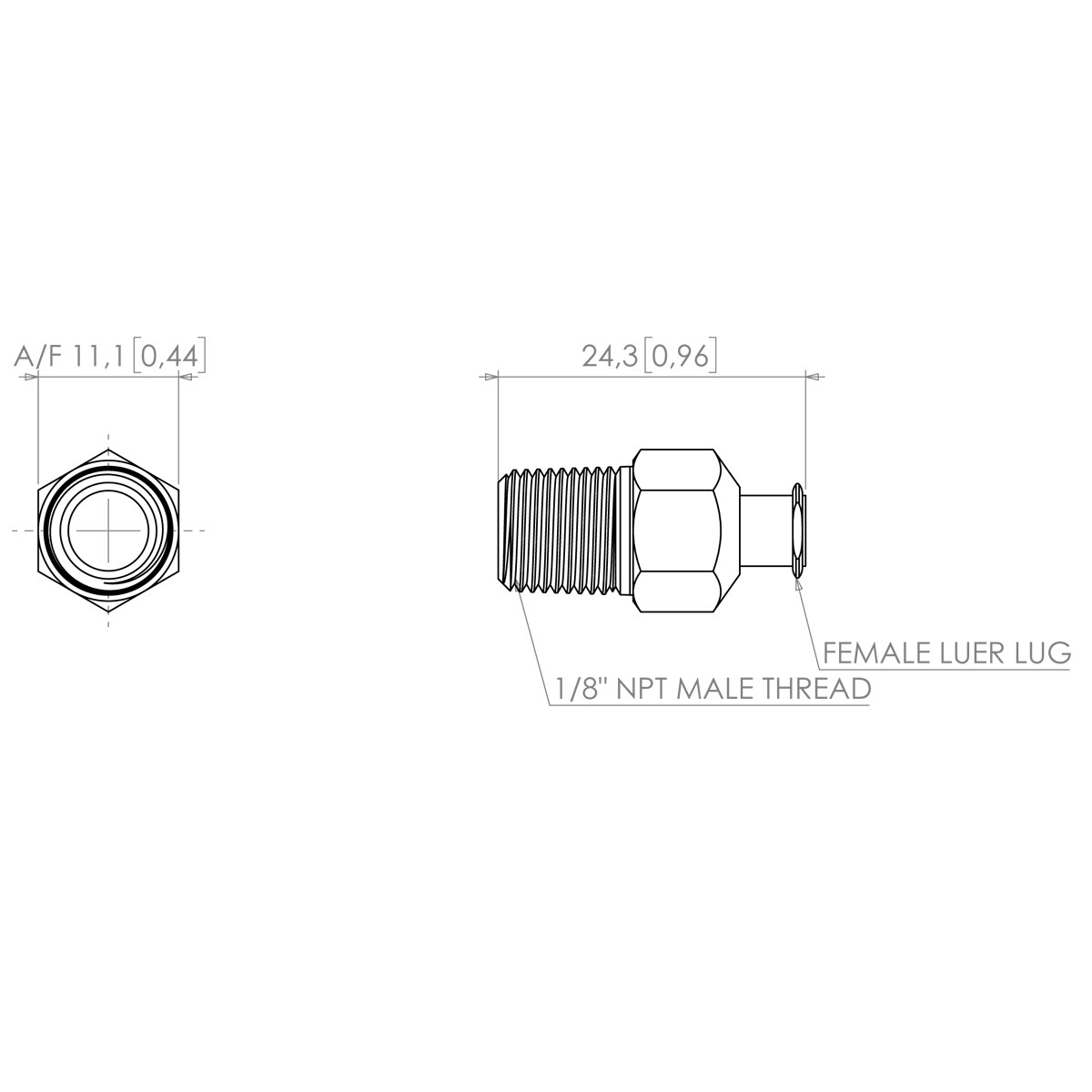

Dimensional Drawing (pdf)

3D model (IGS)
