ISO 80369-7 White Nylon Panel Mount Luer, Female Luer Lock to 3/32" (2.4mm) ID Tube

ISO 80369-7 White Nylon Panel Mount Luer, Female Luer Lock to 3/32" (2.4mm) ID Tube

E-F-210302

ISO 80369-7 White Nylon Panel Mount Luer, Female Luer Lock to 3/32" (2.4mm) ID Tube

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

ISO 80369-7 White Nylon Panel Mount Luer, Female Luer Lock to 3/32" (2.4mm) ID Tube
£0.69+ VAT
Price per piece
Sold in multiples of 10
Add To Wishlist
Quantity
Price

1 - 100

£0.69

101 - 500

£0.66

501 - 1000

£0.62

1001 - 2500

£0.59

2501 - 5000

£0.55

5001 - 10000

£0.52

10001 - 25000

£0.48

25001 - 50000

£0.41

50001

£0.35

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-F-210302

ISO 80369-7 White Nylon Panel Mount Luer, Female Luer Lock to 3/32" (2.4mm) ID Tube

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description ISO 80369-7 White Nylon Panel Mount Luer, Female Luer Lock to 3/32" (2.4mm) ID Tube

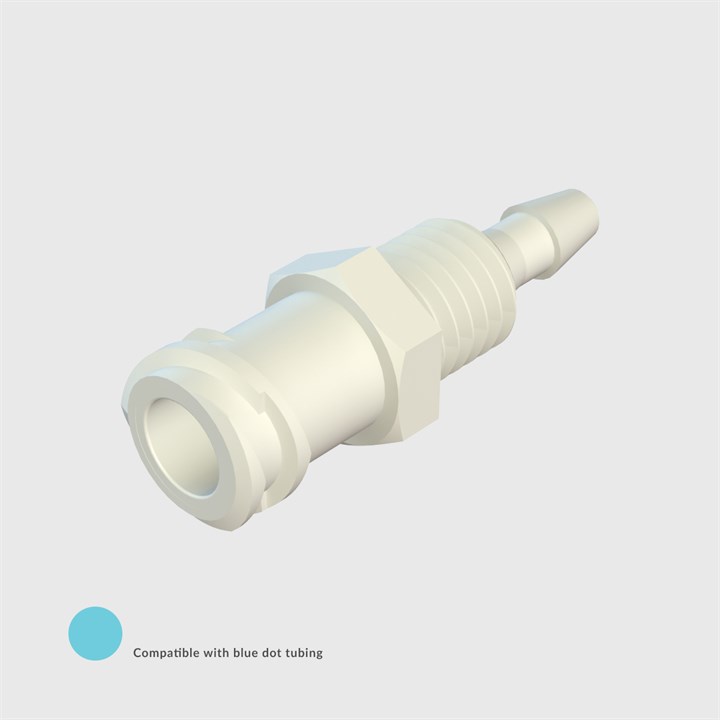

Extended Description A white Nylon bodied panel mount luer with ISO 80369-7 female luer lock to barb for 3/32" (2.4mm) ID tube with 1/4-28 UNF thread

Ambient Temperature Yes

Mounting Style Panel Mount

Connection 1 Female Luer Lock

Connection 2 To suit 2.4 mm (3/32") ID Tube

Recommended Filtration To suit application and media used

Media Temperature Yes

Non-Wetted Materials Nylon

Wetted Materials Nylon

Cleanroom Manufactured Class 8 (100,000) cleanroom

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Phthalate Free. Latex Free. DEHP Free. Ozone depleting substrances compliant. Compatible with EtO (Ethylene Oxide) sterilisation and can withstand gamma sterilisation to 50kGy. It does have a tendency to discolour with increased doses of gamma radiation. Nylon can also be autoclaved. It is a hygroscopic material and may swell when exposed to moist environments. This product is compliant to either ISO 594 and ISO 80369-7. The ISO 80369-7 series of standards aims to minimise misconnections between small bore connectors of different functional categories. ISO 80369-7 specifically addresses intervascular and hypodermic applications. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
