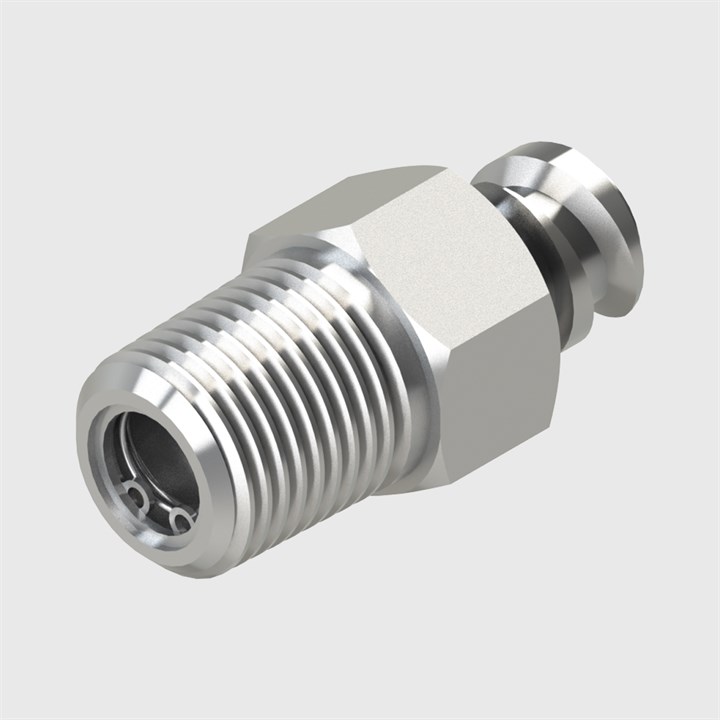

316 Stainless Steel Valved Luer, Silicone Seal, Female Luer Lock to 1/8" NPT Male Thread

316 Stainless Steel Valved Luer, Silicone Seal, Female Luer Lock to 1/8" NPT Male Thread

E-F-171427

316 Stainless Steel Valved Luer, Silicone Seal, Female Luer Lock to 1/8" NPT Male Thread

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

316 Stainless Steel Valved Luer, Silicone Seal, Female Luer Lock to 1/8" NPT Male Thread
£33.06+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£33.06

10 - 24

£31.41

25 - 49

£29.75

50 - 99

£28.10

100 - 249

£26.45

250 - 499

£24.80

500

£23.14

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-F-171427

316 Stainless Steel Valved Luer, Silicone Seal, Female Luer Lock to 1/8" NPT Male Thread

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description 316 Stainless Steel Valved Luer, Silicone Seal, Female Luer Lock to 1/8" NPT Male Thread

Extended Description A 316 Stainless Steel bodied luer valve with 1/8" NPT male Thread to female luer lock, complete with Silicone o-ring and 302 Stainless Steel spring. Valve open only when connected to male luer

Ambient Temperature -40 to 200°C (-40 to 392°F)

Mounting Style Threaded

Connection 1 1/8" NPT Male Thread

Connection 2 Female Luer Lock

Media Temperature -40 to 200°C (-40 to 392°F)

Non-Wetted Materials 316 Stainless Steel

Wetted Materials 316 Stainless Steel

Cleanroom Manufactured No

Max. Inlet Pressure No Data Available – Sample Test for Suitability

Operating Pressure Vacuum – 3.1 bar (45 psi) As Specified in Testing to ISO 594

Min Inlet Pressure Vacuum

Item Weight 0.0110Kg (11g)

ROHS Compliant Yes

Regulatory Information ISO 594, ISO 80369-7

REACH Compliant Yes

Other Technical Data This product is compliant to both ISO 594 and ISO 80369-7. Suitable for compressed air and vacuum. The configurations are available on standard fittings. Due to many variations in materials used for tubing, please experiment with the various barbs to get the fit require. The tube inside diameter range represents a push-on assembly. Using tube expanding equipment or an external mechanical grip the range may expanded. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
