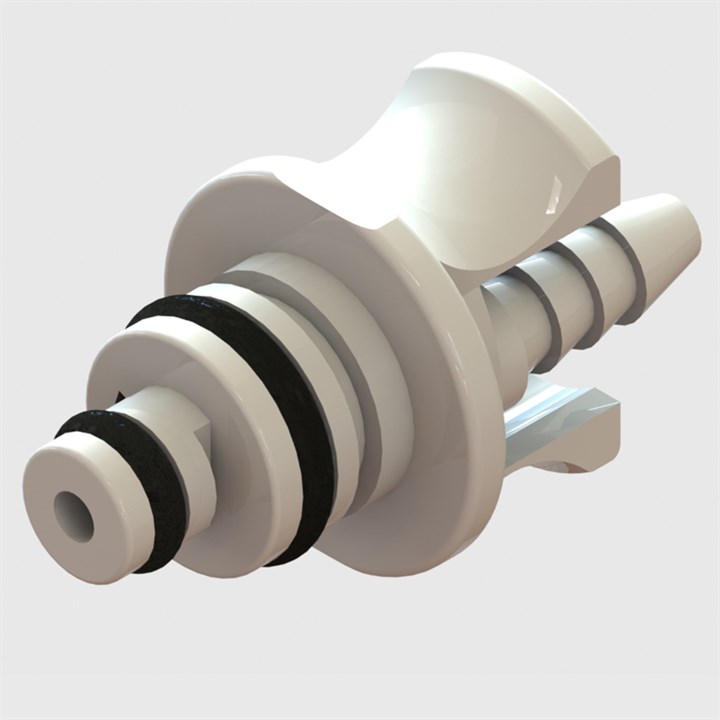

In-Line 1/8" ID Dual Tube Hose Barb Plug, Non-Valved, 3/32" Flow, Medical Grade ABS

In-Line 1/8" ID Dual Tube Hose Barb Plug, Non-Valved, 3/32" Flow, Medical Grade ABS

E-Q-160548

In-Line 1/8" ID Dual Tube Hose Barb Plug, Non-Valved, 3/32" Flow, Medical Grade ABS

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Medical Grade ABS Dual Line Plug Coupling, Buna-N Seal, 3.2mm (1/8") ID Tube, Non-Valved, 3/32" Flow - Q42 Series
£7.69+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£7.69

10 - 24

£7.31

25 - 49

£6.92

50 - 99

£6.54

100 - 249

£6.15

250 - 499

£5.77

500

£5.38

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-Q-160548

In-Line 1/8" ID Dual Tube Hose Barb Plug, Non-Valved, 3/32" Flow, Medical Grade ABS

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Medical Grade ABS Dual Line Plug Coupling, Buna-N Seal, 3.2mm (1/8") ID Tube, Non-Valved, 3/32" Flow - Q42 Series

Extended Description Thumb Latch Couplings - 3/32" Flow size dual tube Plug coupling in medical grade ABS, for connection to audible click thumb-latch mating Socket connector

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style In-line

Connection 1 To suit 3.2 mm (1/8") ID Tube x2

Connection 2 To mating Q42 Socket Connector

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Medical Grade ABS, Chrome Plated Brass

Wetted Materials Medical Grade ABS, Buna-N

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 8.3 bar (120 psi)

Operating Pressure 8.3 bar (120 psi)

Min Inlet Pressure Vacuum

Item Weight 0.0020Kg (2g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Connects with other Q42 Coupling. This product is guaranteed to interconnect with all pre-WGisting industry standard interchangeable thumb latch quick release couplings of the same size and style, or if not will be replaced or refunded. Suitable for bi-directional flow. Alternative seal materials available. Custom designs available or for further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
