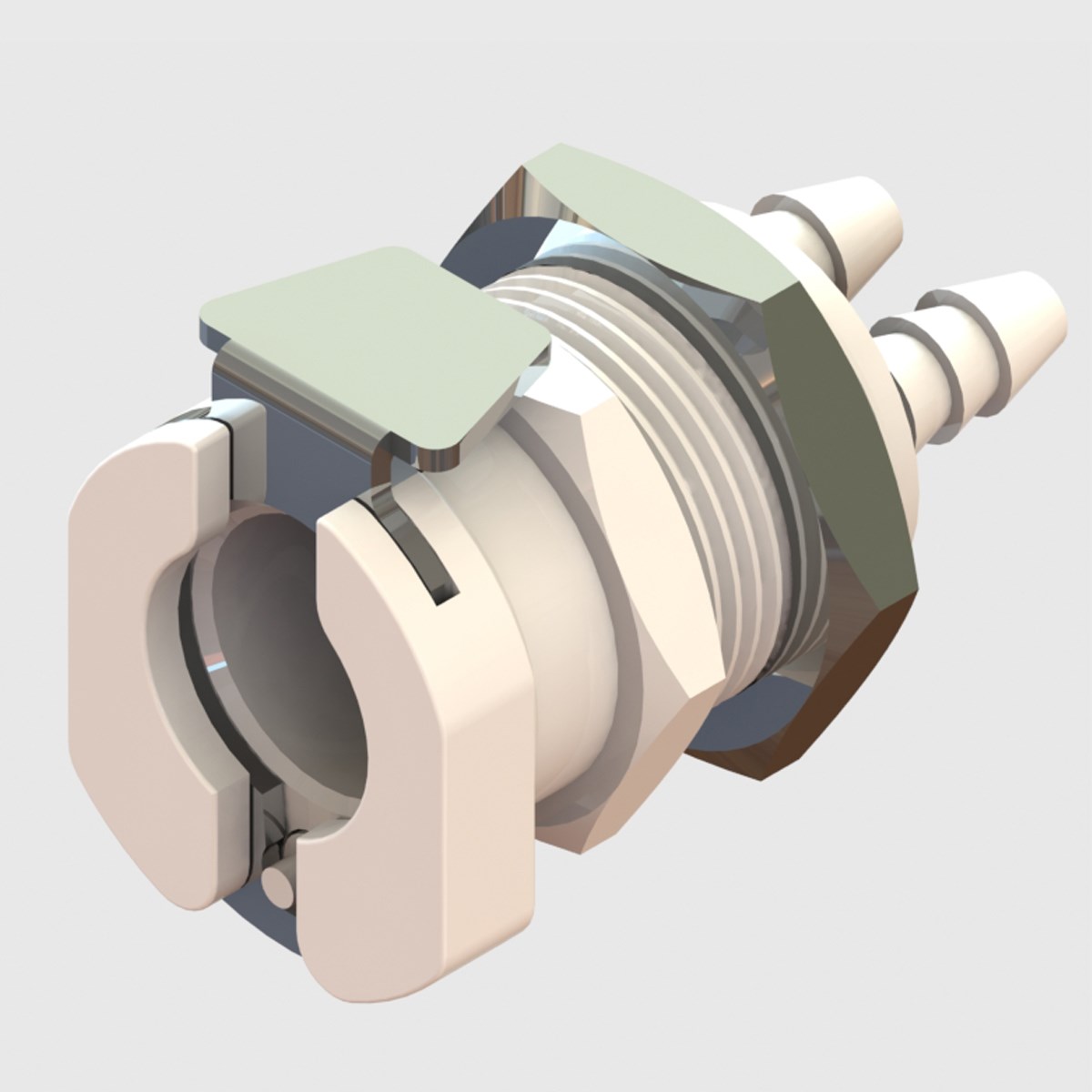

Thumb Latch-In-Line 1/8" ID Dual Tube Panel Mount Hose Barb Socket, Non-Valved, 3/32" Flow, Medical Grade ABS

Thumb Latch-In-Line 1/8" ID Dual Tube Panel Mount Hose Barb Socket, Non-Valved, 3/32" Flow, Medical Grade ABS

E-Q-160547

Thumb Latch-In-Line 1/8" ID Dual Tube Panel Mount Hose Barb Socket, Non-Valved, 3/32" Flow, Medical Grade ABS

In Stock
Medical Grade Panel Mount ABS Dual Line Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 3/32" Flow - Q42 Series
£11.29+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£11.29

10 - 24

£10.73

25 - 49

£10.16

50 - 99

£9.60

100 - 249

£9.03

250 - 499

£8.47

500

£7.90

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-Q-160547

Thumb Latch-In-Line 1/8" ID Dual Tube Panel Mount Hose Barb Socket, Non-Valved, 3/32" Flow, Medical Grade ABS

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Medical Grade Panel Mount ABS Dual Line Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 3/32" Flow - Q42 Series

Extended Description Thumb Latch Couplings - 3/32" Flow size dual tube panel mount hose barb Socket coupling in medical grade ABS, with metal audible click thumb-latch connection

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style Panel Mount

Connection 1 To suit 3.2 mm (1/8") ID Tube x2

Connection 2 To mating Q42 Plug Connector

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Medical Grade ABS, Chrome Plated Brass

Wetted Materials Medical Grade ABS, Buna-N

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 8.3 bar (120 psi)

Operating Pressure 8.3 bar (120 psi)

Min Inlet Pressure Vacuum

Item Weight 0.011 (0.37oz)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Connects with other Q42 Couplings. This product is guaranteed to interconnect with all pre-existing industry standard interchangeable thumb latch quick release couplings of the same size and style, or if not will be replaced or refunded. Nut is Included. Suitable for bi-directional flow. Custom designs available or for further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

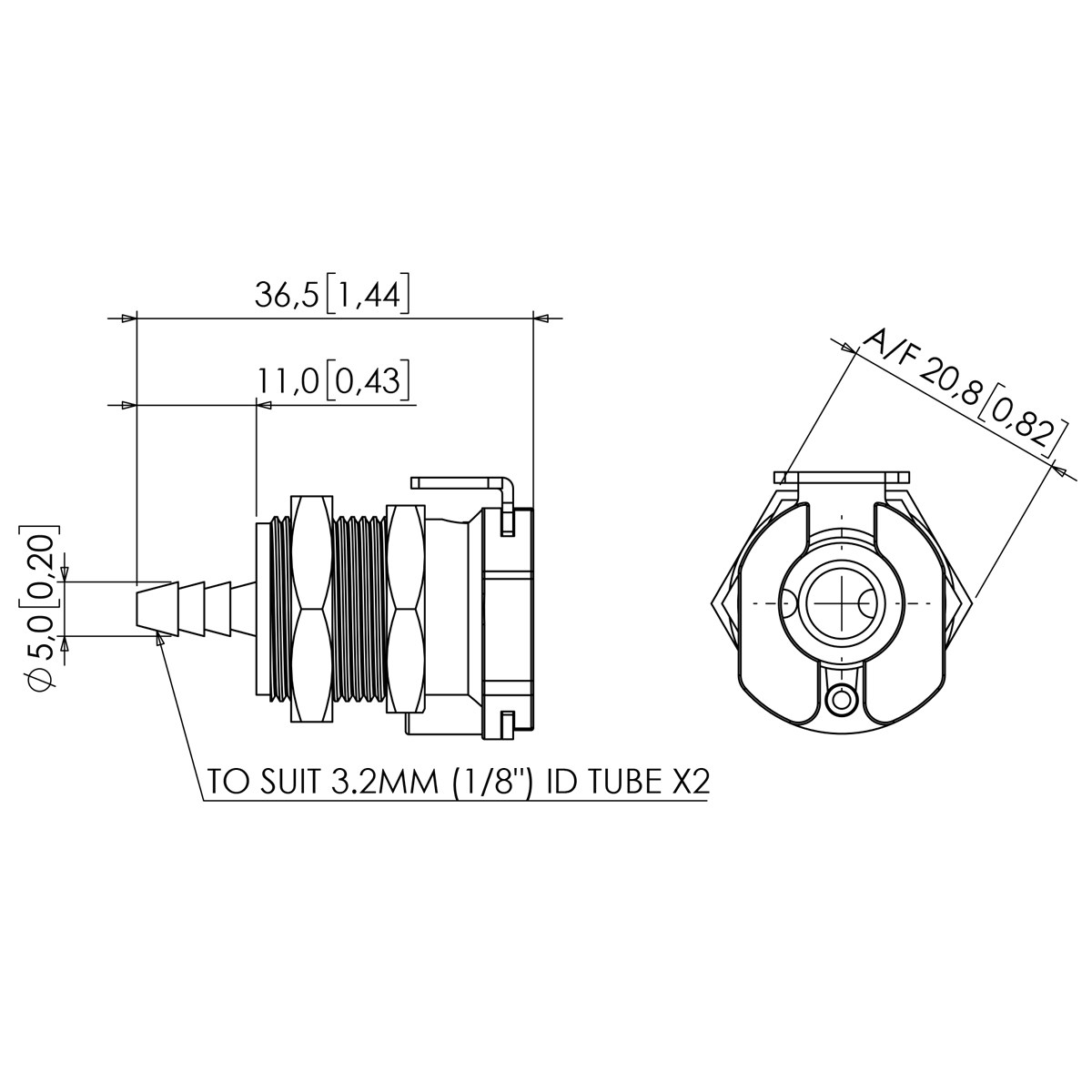

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
