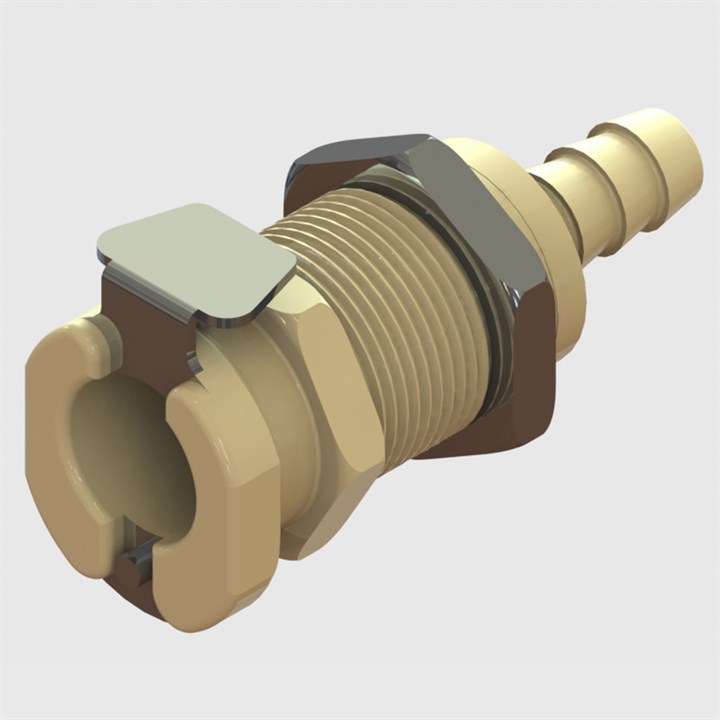

Polypropylene Panel Mount Socket, 6.4mm (1/4") ID Tube, Non-Valved, 1/4" Flow - Q4

Polypropylene Panel Mount Socket, 6.4mm (1/4") ID Tube, Non-Valved, 1/4" Flow - Q4

E-Q-160535

Polypropylene Panel Mount Socket, 6.4mm (1/4") ID Tube, Non-Valved, 1/4" Flow - Q4

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Polypropylene Panel Mount Socket, 6.4mm (1/4") ID Tube, Non-Valved, 1/4" Flow - Q4
£14.87+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£14.87

10 - 24

£14.13

25 - 49

£13.38

50 - 99

£12.64

100 - 249

£11.90

250 - 499

£11.15

500

£10.41

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-Q-160535

Polypropylene Panel Mount Socket, 6.4mm (1/4") ID Tube, Non-Valved, 1/4" Flow - Q4

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Polypropylene Panel Mount Socket, 6.4mm (1/4") ID Tube, Non-Valved, 1/4" Flow - Q4

Extended Description 1/4" Flow size Socket coupling in medical grade gamma-sterilisable Polypropylene, with metal audible click thumb-latch connection to mating Plug connector

Ambient Temperature 0°C to 71°C (32°F to 160°F)

Mounting Style Panel Mount

Connection 1 To suit 6.4 mm (1/4") ID Tube

Connection 2 To mating Plug Connector

Recommended Filtration To suit application and media used

Media Temperature 0°C to 71°C (32°F to 160°F)

Non-Wetted Materials P5M6K-080 medical grade gamma-stable Polypropylene, Chrome Plated Brass, Stainless Steel

Wetted Materials P5M6K-080 medical grade gamma-stable Polypropylene

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 8.3 bar (120 psi)

Operating Pressure 8.3 bar (120 psi)

Min Inlet Pressure Vacuum

Item Weight 0.0110Kg (11g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data This product is guaranteed to interconnect with all pre-WGisting industry standard interchangeable thumb-latch quick release couplings of the same size and style, or if not will be replaced or refunded. Nut is Included. Suitable for bi-directional flow. Custom designs available or for further information please contact us on +44 (0)2392 26603

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
